Precision Three-Hole Blade for Battery and Metal Foil
This three-hole foil cutting blade for battery foil slitting also serves thin metal foil and other precision slitting equipment. Common 43 mm and 60 mm formats are available, while length, width, thickness, hole positions, carbide grade and edge finish are confirmed against the approved drawing.
Product Specifications
MEIRENTE three-hole foil cutting blades are manufactured from solid tungsten carbide for precise, stable slitting of thin foil materials. The wear-resistant carbide body and precision-ground cutting edge support consistent cut quality and long service life in high-speed production.
| Item | Specification |
|---|---|
| Product Type | Three-hole foil cutting blade / battery foil slitting knife |
| Material | Solid tungsten carbide |
| Standard Length | 43 mm or 60 mm |
| Standard Width | 22 mm |
| Standard Thickness | 0.2 mm, 0.3 mm, or 0.4 mm |
| Surface Finish | Precision-ground and polished |
| Cutting Edge | Fine precision-ground edge; edge geometry confirmed according to the approved drawing and application |
| Application | Copper foil, aluminum foil, lithium-battery electrode foil, composite foil, and other precision thin-foil slitting applications |
| Customization | Custom dimensions, hole positions, carbide grades, edge geometry, and surface finish are available according to drawings or samples |
| OEM / ODM | Supported |
| MOQ | Flexible; confirmed according to specification and order quantity |

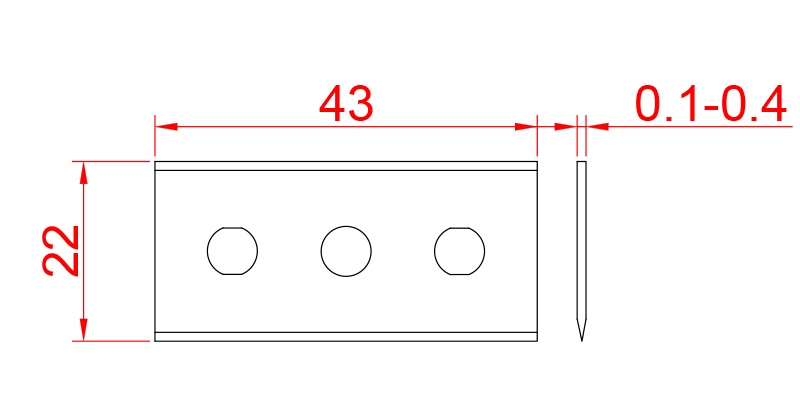

Standard Sizes & Dimensions
| Length (mm) | Width (mm) | Thickness (mm) | Material |
|---|---|---|---|
| 43 | 22 | 0.2 | Tungsten carbide |
| 43 | 22 | 0.3 | Tungsten carbide |
| 43 | 22 | 0.4 | Tungsten carbide |
| 60 | 22 | 0.2 | Tungsten carbide |
| 60 | 22 | 0.3 | Tungsten carbide |
| 60 | 22 | 0.4 | Tungsten carbide |
Customization & Quality Control
| Model | 43 × 22 × 0.2 / 0.3 / 0.4 mm; 60 × 22 × 0.2 / 0.3 / 0.4 mm |
|---|---|
| Inspection | Dimensions, hole position, flatness, surface finish, and cutting edge are inspected before shipment |
| Service | Drawing- and sample-based custom manufacturing |
Buyer Terminology and Blade Specifications
Industrial teams often use several names for the same blade family. We use those terms to identify the likely application, then confirm the final design from the drawing, sample and machine conditions.
Size and geometry. The terms “three-hole industrial razor blade”, “thin carbide slitting blade” and “carbide foil cutting knife” usually describe geometry or configuration. Requests using “precision three-hole slitter blade” or “custom hole-position foil blade” should confirm critical dimensions and edge orientation.
Application and equipment. Buyers may search for “tungsten carbide foil slitter blade”, “precision knife for thin metal foil cutting” or “battery electrode foil cutting knife” when identifying an application. For requests described as “aluminum foil slitting knife” or “copper foil slitter blade”, include the processed material, machine interface and required cut quality.
Custom and replacement supply. Sourcing language can include “thin foil cutting razor blade”, “three-hole blade for slitter rewinder” or “replacement foil blade for converting machine”. Requests using “custom three-hole blade manufacturer” or “OEM foil blade from drawing” should include an approved drawing or sample details before production.
The approved drawing and application conditions always control the manufactured blade specification.
Carbide Foil Slitter Blade Specifications
- Confirm blade length, width, thickness, three-hole spacing and locating tolerances.
- Describe the foil material, thickness range, slitting method and required edge quality.
- Provide the holder or machine model and identify the working edge and cutting direction.
- Report burr, edge-chipping, dust or service-life problems from the current blade.
Compare related foil slitting & battery electrode blades, or review the custom industrial knife manufacturing process before sending your drawing, sample details and required quantity.
Direct answers for blade buyers
Questions Buyers Ask About This Blade
What is Three-Hole Battery Foil Blade used for?
This three-hole foil cutting blade for battery foil slitting also serves thin metal foil and other precision slitting equipment. Common 43 mm and 60 mm formats are available, while length, width, thickness, hole positions, carbide grade and edge finish are confirmed against the approved drawing.
What information is needed to quote Three-Hole Battery Foil Blade?
Please provide confirm blade length, width, thickness, three-hole spacing and locating tolerances.; describe the foil material, thickness range, slitting method and required edge quality.; provide the holder or machine model and identify the working edge and cutting direction.. Include the required quantity and any current cutting problem when available.
Can MEIRENTE manufacture a replacement blade from a drawing or sample?
Yes. MEIRENTE reviews drawing- or sample-based replacement blade requests. Critical dimensions, mounting features, cutting direction, material and edge requirements are confirmed before production.
How is the final industrial blade specification confirmed?
The approved drawing and confirmed application conditions control the final specification. The workpiece, machine interface, cutting motion, current defect and inspection requirements should be reviewed together rather than selecting a blade from its name alone.
